EMU 1003D
The main function
● Unique positive protection management design
● Sampling, charging and discharging with the same port design. 15/16 series compatible. Support 8-16 series
● High-precision battery cell voltage sampling (error margin ≤5mV/cell)
● High-precision current detection (<±1A@100A range)
● Unique SOC and SOH algorithm
● Two modes of charging and static balance (balance current≤150mA)
● Integrated 10A current limit, active and passive modes are optional
● Communication: RS485/RS232 (support 7 parallel machines)
● Built-in pre-charge function
● Ultra-low sleep power consumption (＜10uA)
● Support 0-50A charge and discharge
Expand function
● Heating function (power 200W)
● Transfer board (communication, reset, LED, lead)
● Visualization of function switch options

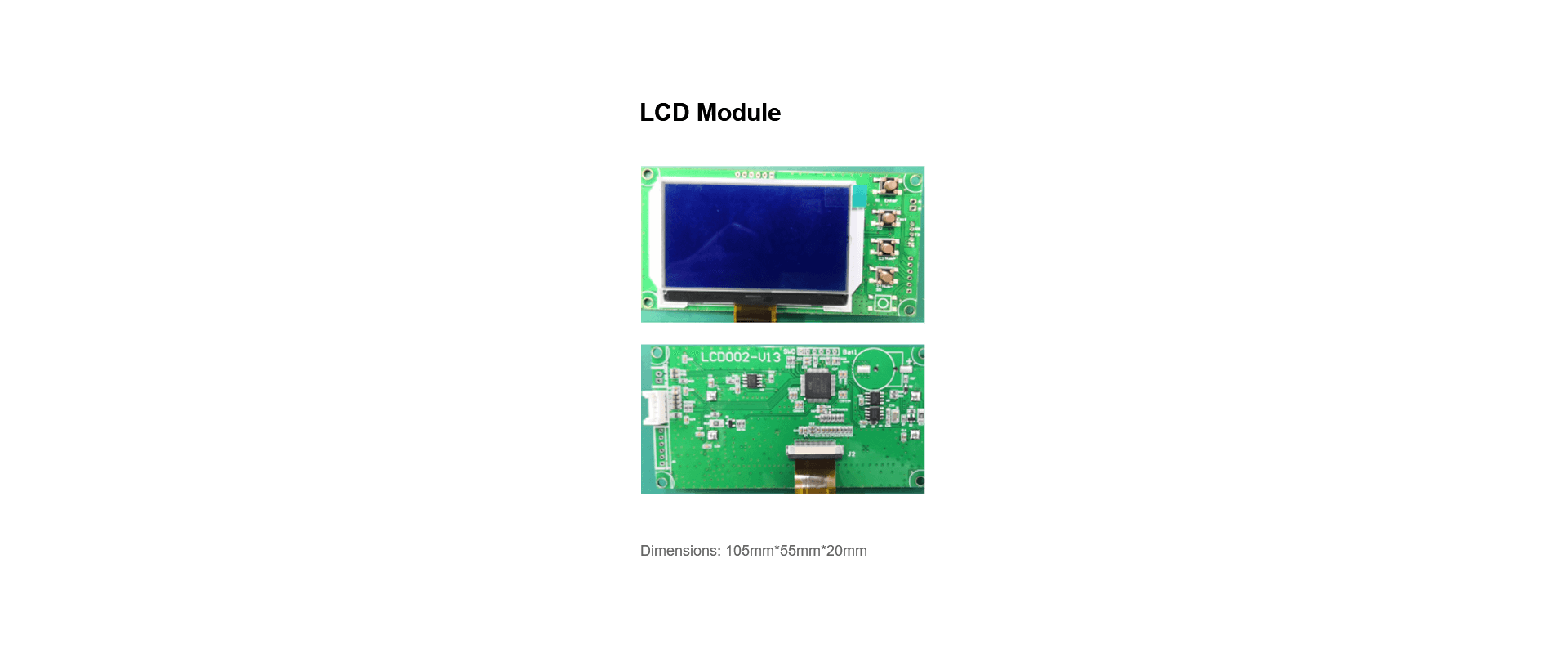

● 2.7 inch LCD display module
Model
1003D
Current
Current：0~50A
Number of strings
8~16
dimensions
185mm*80mm*20mm
Expansion accessories
