EMU 1101
The main function
● Unique positive protection management design
● Sampling, charging and discharging with the same port design. 15/16 series compatible. Support 8-16 series
● High-precision battery cell voltage sampling (error margin ≤5mV/cell)
● High-precision current detection (<±1A@100A range)
● Unique SOC and SOH algorithm
● Integrated 10A current limit, active and passive modes are optional
● Two modes of charging and static balance (balance current≤150mA)
● Ultra-low sleep power consumption (＜10uA)
● Communication: RS485/RS232/CAN/RM485 (support 15 parallels)
● Pre-charge function
● Support 0-200A charge and discharge
● Inverter: 5 in 1 CAN communication protocol
Expand function
● Heating function (power 200W)

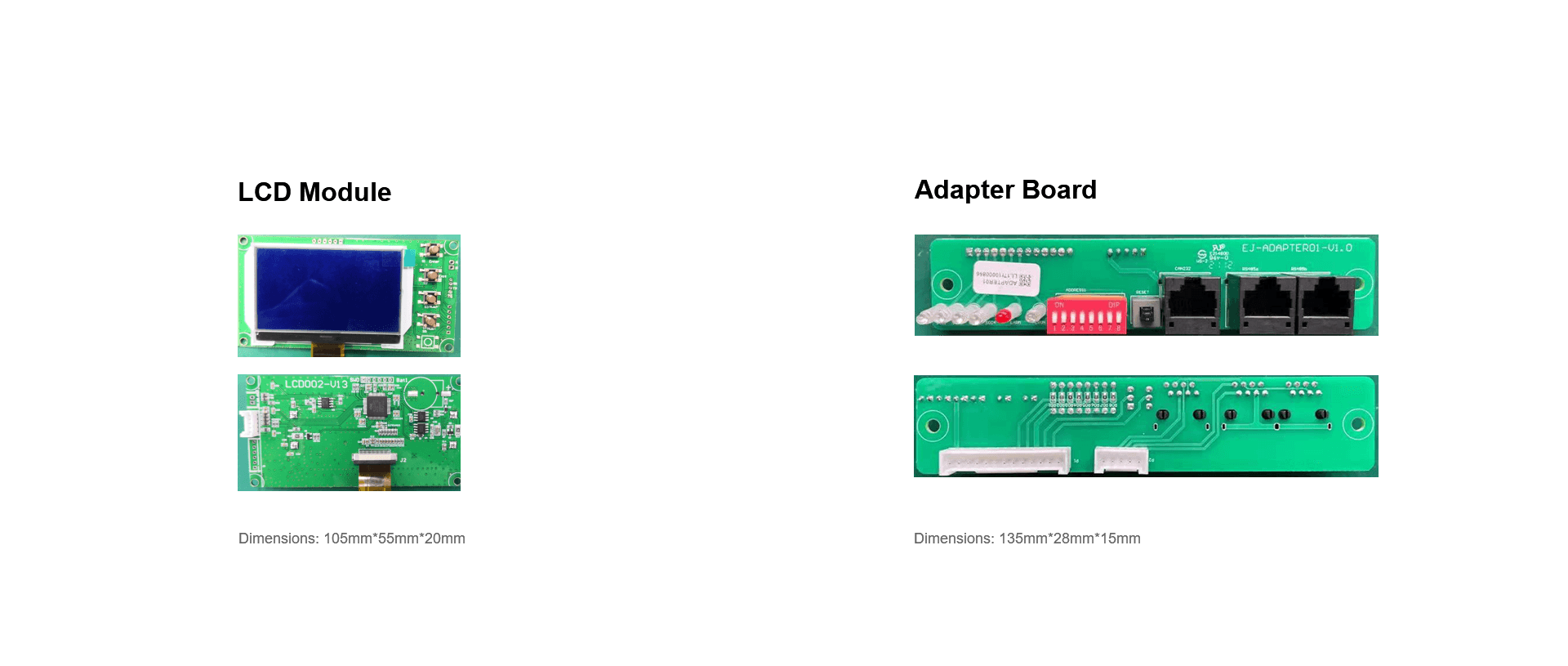

● Available adapter board (communication, reset, LED, lead out)
● Visualization of function switch options
● 2.7 inch LCD display module
Model
1101
Current
Current：0~200A
Number of strings
8~16
dimensions
300mm*100mm*30mm
Expansion accessories
Home Storage
The five layers of reliable protection from design, testing, materials, production technology and processing flow in household energy storage make every battery safe, reliable and durable.
